A Compact Photo Booth in a Modern and Minimalist Design

Category: Photo Booth

Industry: Event



Photo Booth Tower

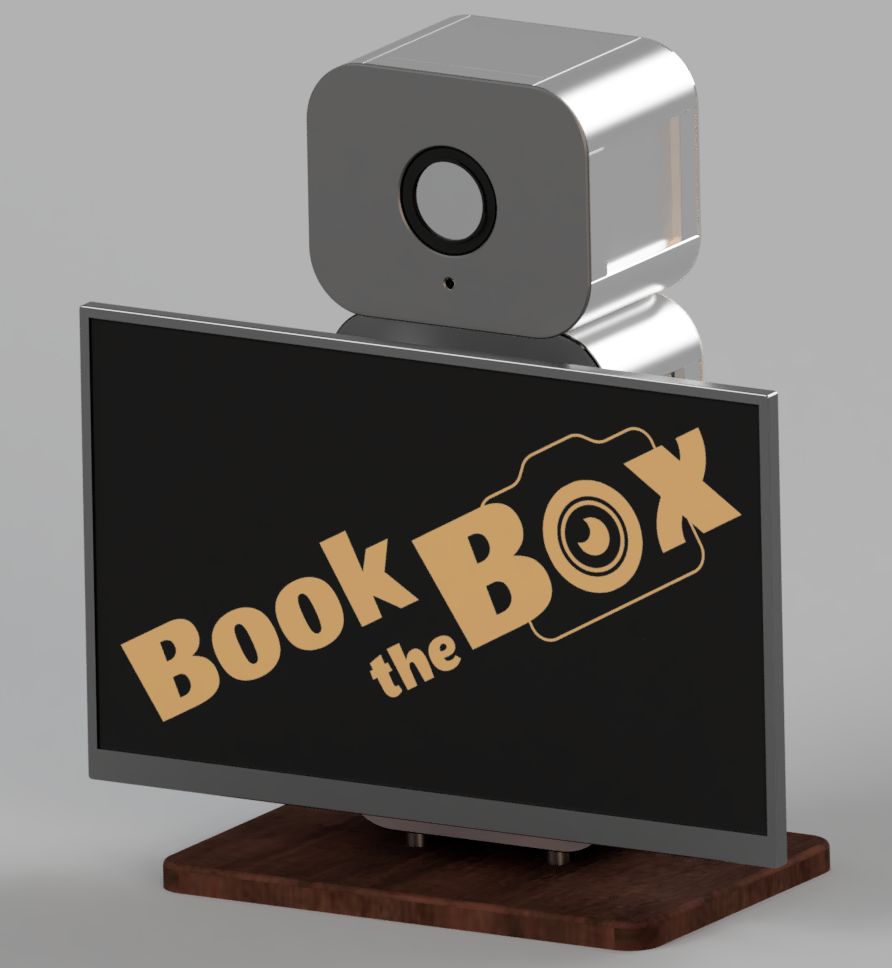

Photo booths come in many varieties on the market. With the design of the “Tower” photo booth, we aimed for a minimalist and elegant approach.
The booth was intended to deliver uncompromising image quality and user comfort, while remaining compact and portable—and not looking like a typical box with cutouts.

Features:

  • Dimensions with monitor: Width: 49 cm, Height: 44 cm, Depth: 18 cm (without stand)
  • Canon EOS 550D DSLR camera, or compatible model
  • Second camera for live preview (reduces heat buildup on some DSLR models like the Canon EOS 550D)
  • 21.5″ Full HD touch monitor
  • VESA monitor mount
  • Powerful single-board computer with real-time clock
  • LTE, Wi-Fi, LAN, Bluetooth
  • Hidden cable routing
  • Image backup to a second storage device / or cloud storage
  • Modular base plate
  • Transport case

If you’d prefer to rent the photo booth or see its functionality for yourself,
feel free to visit: www.book-the-box.de

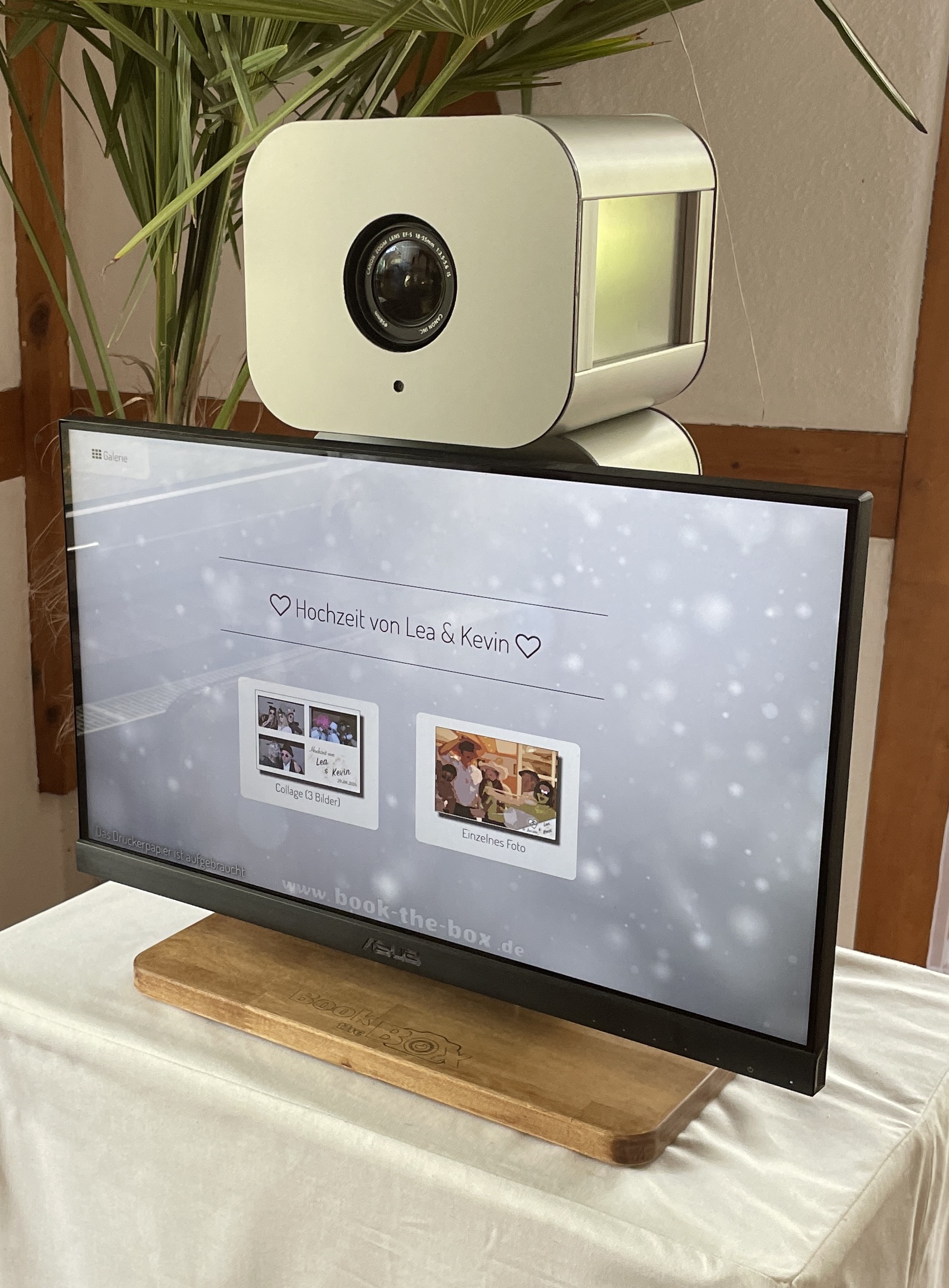

With a volume of 9.2 liters (without monitor), the Photo Booth Tower is extremely compact. Even so, it makes no compromises when it comes to equipment. Operation is via the 21.5″ touchscreen or optionally via a remote trigger like a buzzer. Images are captured using a DSLR camera. A powerful single-board computer with a custom Linux version ensures fast and reliable performance. Images are saved to two storage devices for enhanced data protection and can optionally be uploaded directly to the cloud.

The photo booth is intended to be expanded with continuous lighting. Compatibility with a flash is not supported in this configuration—we have a specific design for that, feel free to contact us. The system is prepared for printer connectivity either via USB or wireless.

System status can be monitored remotely via Wi-Fi or LTE as needed.

A floor-mounted insert enables the stand to be swapped, allowing the booth to adapt to different setups. We currently offer a square base with optional 15 cm spacers to place it on a table.
Alternatively, a 1.20 m tall stainless steel stand is available for freestanding use. With both stands, power (and optionally USB) cables are routed through the base and exit toward the rear on the underside.



We also offer the following services with our devices:

  • Cloud storage for event photos
  • Remote support and maintenance
  • LTE/5G SIM card packages
  • Professional photo printer

Of course, we can fully customize the photo booth software and hardware to fit your needs.
